1.Ball press machine introduction:
Ball press machine is the raw material directly after crushing machine production, without adding
water. Such as: aluminum powder, activated alumina, lime, etc., the aim is to reduce dust control
capacity, the return to the use, improve the transport properties design capacity.
2.Principle of the ball press machine
After belts, spread reducer, reducer through the coupling, and then transmitted to the drive shaft by a split gear, to ensure the synchronization of two rollers (constant reverse) material storage
silo hopper evenly into the molding equipment by quantitative so that the material forming
pressure units from small to large, in the center of the roll forming pressure connection at the
maximum, the material through the line, the pressure rapidly forming the material into smaller
balls off state, smooth off the ball.
3.Features of the high pressure ball press machine
1.Molding pressure, the host rpm adjustable with screw feeding device.
2.ball press machine with the ball high, low power consumption, the obvious advantages
compact for easy maintenance and debugging.
3.Pressure ball density requirements to adjust the pressure and production flexibility.
4.Technical parameter of ball press machine
|
Model
|
Reducer
|
The dimension of pressing roll
|
Speed of main shaft(r/min)
|
Power of motor(kw)
|
Output(t/h)
|
|
|
The width
|
The diameter
|
|||||
|
HYXM360
|
ZQ350
|
250mm
|
Φ360mm
|
17-19
|
7.5
|
3-5
|
|
HYXM400
|
ZQ400
|
280mm
|
Φ400mm
|
14-16
|
11~15
|
6-9
|
|
HYXM500
|
ZQ500
|
300mm
|
Φ500mm
|
12-14
|
18.5~22
|
10-11
|
|
HYXM650
|
ZQ650
|
336mm
|
Φ650mm
|
12-14
|
20~30
|
12-20
|
|
HYXM750
|
ZQ750
|
400mm
|
Φ750m
|
12-14
|
45
|
25-30
|
|
HYXM850
|
ZQ850
|
500mm
|
Φ850mm
|
10-11
|
75
|
35-40
|
|
HYXM1250
|
ZQ1250
|
650mm
|
Φ125mm
|
10-11
|
130
|
40-45
|
|
Notice:The spherical size is designed by need, but the common used is 30-60mm.
|
||||||
5.Structural composition the ball press machine
Pressure the ball machine structure consists of three parts:the feed section; transmission parts; molding parts.
1, feeding part, is to achieve dosing to ensure access to the material evenly between the rolls.
2, transmission parts, main drive system are:motor - a triangle with - open gear reducer - roll.
3, forming part of, mainly referring to host part of the core part of the roll.

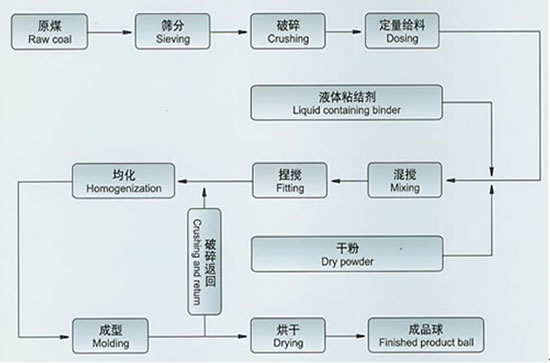

Flow chart
 |

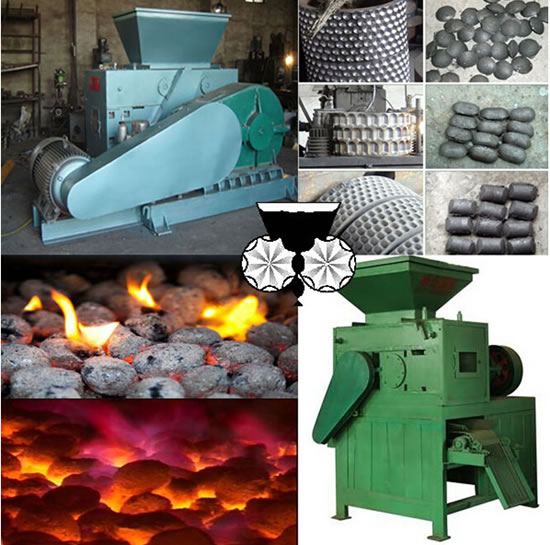

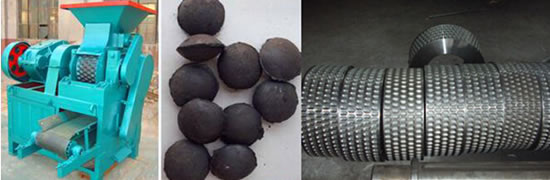

The Detailed Pictures:
 |
 |
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
