Best selling high pressure coal ball briquettes presses machine
Best selling high pressure coal ball briquettes presses machine
Best selling high pressure coal ball briquettes presses machine
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
Introduction:
Coal ball briquettes presses machine is mainly used to press one kind or several kinds of coal powder, etc, that mixed with a certain proportion of binder, to coal briquettes which with certain shape and certain physical and chamical properties. It is one kind of the most popular coal briquette molding equipments both in domestic and overseas markets. The coal briquettes that pressed by our coal ball briquettes presses machine with the merits of good burning effects, energy saving and environment protestion, easy for storage and convenient for transportaion, etc.
In order to enhance the intensity of pressure, the rollers manufacturered by our factory all adopt 65 manganese, nine chrome molybdenum, the hardness over 60 level. Using high wear-resistant sole processing technology, improve the service life of 5-8 times. Besides, we have also designed a new type of four-roller briquette pressing machine, which the pressure is highly improved.
Features:
1. The briquettes produced by our machine are smokless, smelless, because we have the high technology liquid binder recipe.
2. The service live of coal ball briquettes presses machine is prolonged, especially the wear-resistant spare parts.
3. The machine is easy operation, easy maintain.
4. This machine is energy saving, can save electricity of 60%, save labors of 2-3 person. Also it is environment protect, it can tatally compress the coal powder into coal briquettes, less residue.
5. The pressure is highly increased because we have not only the four roller type briquette machine, also we have hydraulic type.
Raw materials:
1. Coal powder, brown coal, white coal powder or dust, coke powder, coking coal, etc. Besides, carbon dust, bamboo charcoal dust, shisha charcoal powder, coconut shell charcoal powder, jujube charcoal powder, coke charcoal powder, our coal ball briquettes presses machine can be also used to press coal, etc. This equipment is widely used in the field of chemical, refrectories, ceramics, mining, and metallurgy, etc.
2. The inlet size of the powdery material should be less than 3mm.
3. We have to add suitable binder of some kinds of material for briquetting.
4. The moisture of material should be moderate, and the water content usually is 12-15%.
The shapes and size of briquettes:
Our coal ball briquettes presses machine can compress the charcoal powder into square, oval shape, egg shape, round shape, pillow shape, bread shape, cylinder, bar shape, etc. Also you can make the briquettes hollow in the center. Besides, we can according to your special requirements to make the moulds for you, that means you can set the shape by yourself. Size of briquettes: as your needs within a certain degree (10-80 mm).
Technical parameters:
Model
|
Capacity
|
Roller diam
|
Motor power
|
Pressure
|
Roller speed
|
Briquette size
|
LT-290
|
1.5-2 t/h
|
290 mm
|
5.5 kw
|
40
|
15-17 r/min
|
10-80 mm
|
LT-360
|
2.5-4 t/h
|
360 mm
|
7.5 kw
|
60
|
15-17 r/min
|
10-80 mm
|
LT-450
|
4-5 t/h
|
450 mm
|
15 kw
|
60
|
15-17 r/min
|
10-80 mm
|
LT-500
|
6-8 t/h
|
500 mm
|
22 kw
|
60
|
15 r/min
|
10-80 mm
|
LT-650
|
10-15 t/h
|
650 mm
|
30 kw
|
80
|
15 r/min
|
10-80 mm
|
LT-850
|
25-35 t/h
|
850 mm
|
37-45 kw
|
100
|
13 r/min
|
10-80 mm
|
LT-1000
|
35-40 t/h
|
1000 mm
|
75-90 kw
|
120
|
12 r/min
|
10-80 mm
|

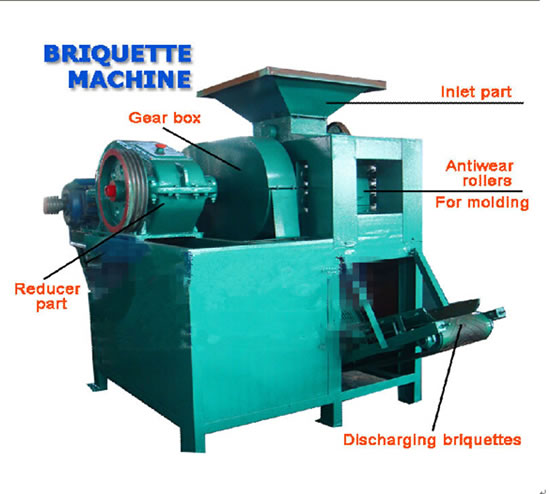

Operation principle of our coal ball briquettes presses machine is as following: the power produced by the motor, through the triangle strip to the reducer, and then is passed to the drive shaft then through a pair of open gear, to enhance the two or four rollers synchronous (constant speed reverse)
The simple flow: Motor → Triangle Belt → Reducer → Coupler → Open Gear → Rollers.

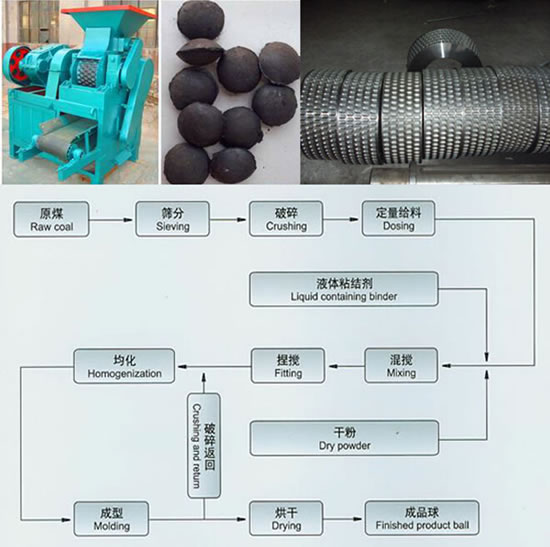

Or you can refer to the following:
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
