High pressure ball press machine (four roller)
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
Major role and characteristics:
raw material :
The raw material comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or charcoal stick and recycled for barbecue, room heating etc.
two roller press machine
type of ball press:
four roller
Four-roller machine working principle is that the two vice-roll pre-suppress materials in the form of pipeline to lay a solid foundation for the finished ball. For finished products heroes ball solid foundation. After the main roll for feeding and secondary pressure, the pressure of materials multiplied, squeeze the ball more solid product. Reached a multiplier effect. Loose on the local materials, such as coke, iron skin, dust powder effects of sludge and other materials is very obvious.
Specification:
Model
|
290
|
360
|
430
|
500
|
650
|
800
|
1000
|
Roller Dia ( mm)
|
290
|
360
|
430
|
500
|
650
|
800
|
1000
|
Motor Power(KW
|
5.5
|
7.5
|
15
|
18
|
25
|
30
|
45
|
Capacity (t/h)
|
1-3
|
4-6
|
6-8
|
8-10
|
10-15
|
15-20
|
22-30
|
Principle of the ball press machine
After belts, spread reducer, reducer through the coupling, and then transmitted to the drive shaft by a split gear, to ensure the synchronization of two rollers (constant reverse) material storage
silo hopper evenly into the molding equipment by quantitative so that the material forming
pressure units from small to large, in the center of the roll forming pressure connection at the
maximum, the material through the line, the pressure rapidly forming the material into smaller
balls off state, smooth off the ball.

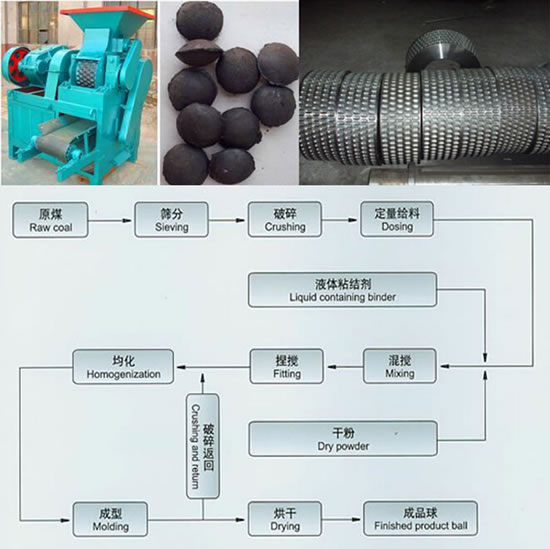

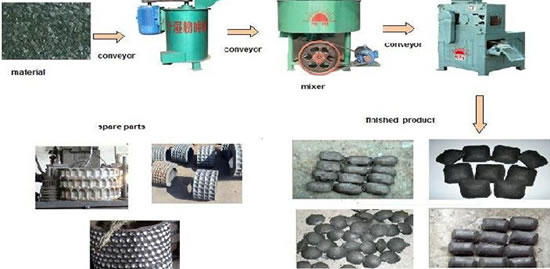

Flow chart of the whole pressure ball production line:
3.Features of the high pressure ball press machine
1.Molding pressure, the host rpm adjustable with screw feeding device.
2.ball press machine with the ball high, low power consumption, the obvious advantages
compact for easy maintenance and debugging.
3.Pressure ball density requirements to adjust the pressure and production flexibility.
Structural composition the ball press machine
Pressure the ball machine structure consists of three parts:the feed section; transmission parts; molding parts.
1, feeding part, is to achieve dosing to ensure access to the material evenly between the rolls.
2, transmission parts, main drive system are:motor - a triangle with - open gear reducer - roll.
3, forming part of, mainly referring to host part of the core part of the roll.

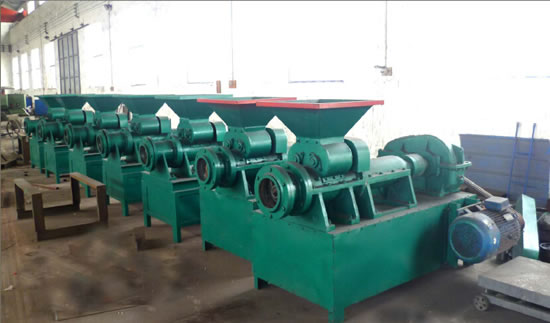

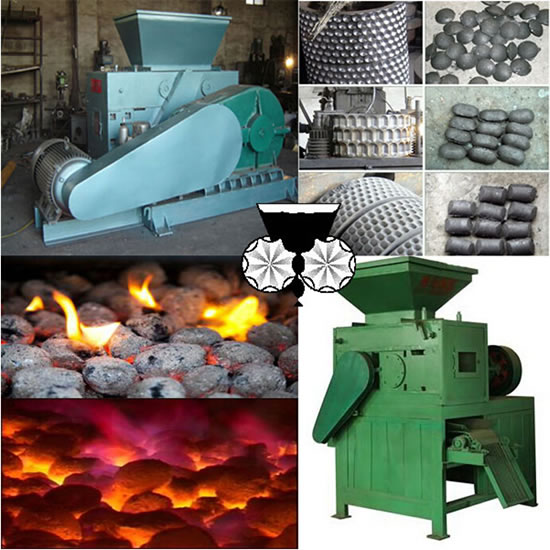

The Detailed Pictures
Packing and shapping of our machines :
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers :
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
