biomass pellet machine
biomass pellet machine
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
.jpg) |

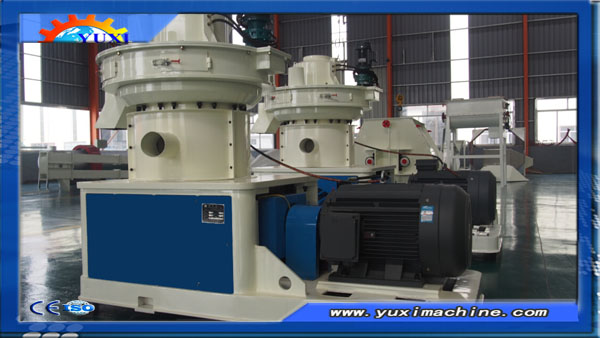

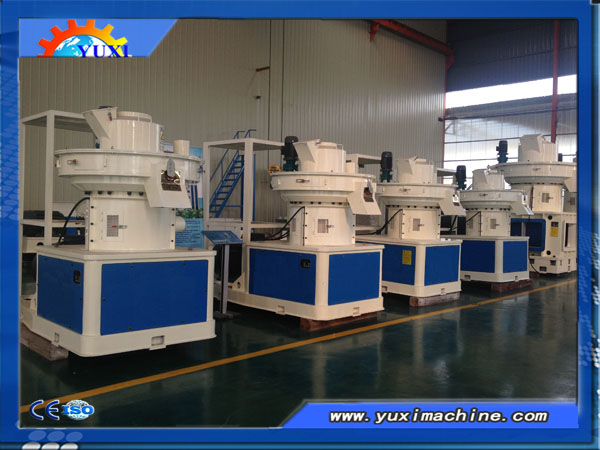

Introduction of biomass pellet machine
1.Straw and stalk fuel (namely biomass fuel) make fully use of solid wastes, such as maize stalk, wheat straw, rice straw, peanut shell, maize padding, cotton stalk, soybean stalk, grass, tree branch and leaves, saw dust, bark, etc. to produce solid rod shape granule fuel through crushing, pressing and forming.
2.Technological process: Collecting raw materials →raw materials crushing →making granule and forming→ finished products.
The complete biomass pellet machine is composed the following steps.
1. Wood chipping; 2. Drying; 3. Grinding; 4. Pelletizing; 5. Cooling; 6. Sieving; 7. Dust collecting; 8. Packing. With high efficient operation of this biomass pellet plant equipment, every single machine can carry out exellent performance. The assembly is with the features of compact structure, small occupation, low consumption and high efficiency. Each standalone machine will design and manufacture in accordance to the demands of clients. Installation will be carried out and guided by professional technician.
1. Wood chipping; 2. Drying; 3. Grinding; 4. Pelletizing; 5. Cooling; 6. Sieving; 7. Dust collecting; 8. Packing. With high efficient operation of this biomass pellet plant equipment, every single machine can carry out exellent performance. The assembly is with the features of compact structure, small occupation, low consumption and high efficiency. Each standalone machine will design and manufacture in accordance to the demands of clients. Installation will be carried out and guided by professional technician.
 |
Features
1.Hammers are the main parts and works the longest time, thus they are easily worn out. The proper adjustment is quite necessary. We adopt mew technology to make hammers and make them wear-resisting and impact resistant.
2. The whole crushing system is close, so there is no dust pollution .
3. Hammer mill is beautifully designed,compact structured and has less wearing parts.
4. We avoid defects like the bearing overheating, uneven wood materials, low capacity, high noise,etc. And make it develops towards low energy consumption, High Abrasion Resistance and environment friendly.
5. We offer tailored service as well based on your requirements.
1.Hammers are the main parts and works the longest time, thus they are easily worn out. The proper adjustment is quite necessary. We adopt mew technology to make hammers and make them wear-resisting and impact resistant.
2. The whole crushing system is close, so there is no dust pollution .
3. Hammer mill is beautifully designed,compact structured and has less wearing parts.
4. We avoid defects like the bearing overheating, uneven wood materials, low capacity, high noise,etc. And make it develops towards low energy consumption, High Abrasion Resistance and environment friendly.
5. We offer tailored service as well based on your requirements.
Advantages of biomass pellet machine
1.To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
2. Low investment and energy consumption
3. High output
4. High-quality finished products
5. Easy to operate and maintain
 |
The main features of raw material particles machine:
1. Main drive adopts high-precision gear drive, the ring mold hoop using quick release type, efficiency ratio relative to the belt drive type is about 20%.
2, the whole transmission part of the selection of high-quality bearings and seals, to ensure that the transmission efficiency, stability, and low noise.
3, the international advanced level of compensation type Grid Couplings, novel structure, compact, safe, low failure and other properties.
4. Strengthen the work intensity of the main part of the work from the material, heat treatment process, so as to achieve granulation requires biomass particles.
5, the addition of non-stop refueling systems, air cooling system, high-performance, low power consumption, stable operation, stable and reliable quality of grain
Production Section of Industrial wood Pellet Machine Line
Chipper → Grinder →Dry Machine → Pellet Mill → Counterflow Cooler → Automatic Weighing and Packing Machin
Raw material receiving, chipping and crushing
The equipments of this section are belt conveyor,crusher, fan,discharger,airlock and the,pulse dust collector.
1. The process of this section is ：
Belt conveyor take the 1-20cm raw wood to the crusher, Adjust the feeding speed of the
belt conveyor according to the crusher’s load current, can ensure the full load working of the crusher.
The crusher is capable for cutting the raw wood into chips and then crush the chips into powder.
The fineness of the powder can be adjusted by using different Screen hole. Powders are then
conveyed to the next section by the wind convey system of combined fan, discharger and airlocks.
2. Drying Section
The equipments of this section are bin for dryer, screw feeder, hot air stove, drum dryer, fan,
discharger, airlock and belt conveyor. The raw material moisture greater than 12% .
The process of this section is: materials go through the screw feeder into the drum dryer,speed controlled as above. Hot wind from the stove blow across the materials, materials are carried and threw up in the drum,
realizing intense heat exchange. So the materials are dried for the next section.
3. Grinding Section
The equipments of this section are belt conveyor, hammer mill.
4. Pelletizing Section
The equipment of this section is permanent magnetic tube, bin for pellet mill, pellet mill,belt conveyor.
The process is:material for pelletized go through the permanent magnetic tube(deironing ) into the bin for pellet mill.
Wood powder go through the feeders into the pellet mill to be pressed intopellet, size of the pellet can be changed by
different ring die. Pellets (80°) go into the counterflow cooler to be cooled by air counterflow.
5. Cooling and Screening Section
The main equipments of this section is Counter-flow Cooler and Viberating screen.
The main equipments of this section is Counter-flow Cooler and Viberating screen.
The cooler is used to reduce the temperature and moisture of the pellets, thusto acquire better hardness and strength. Also it can enhance the transport ability and storage ability.
6.Packing Section
After cooling, wood pellet would be packed into bags in order to avoid affected with damp. Packed pellet would be transferred by truck and sold.
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make plywod case or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
