Product center
Wood pellet machine
Brief introduction of wood pellet machine
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

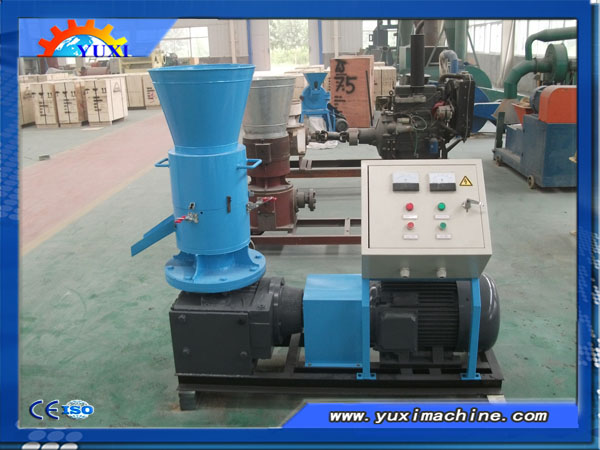

Based on the circular motion, motor or diesel engine powered, driven gear passed to spindle and flat die, cause the clamping roller rotation under the friction force function. Under the pressure of clamping roller, raw material is squeezed from the die hole. Adjusting the cutter to change the pellets length and after flings the material plate to arrive the discharge hole. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation.
.jpg) |
Advantage and suitable condition of raw material
1- 1-Wide range, so it is easy to collect. It will save your cost.
2-Biomass material belong to one kind natural energy. It has no damage for the environment.
3-Biomass material includes lignin, it is one kind natural binder. And it will released out and formed into good quality pellets with the machine temperature. So you don't need to add any additive any more.
4-Market has a large demand for energy product. So the pellets market is developing larger and larger.
1- 1-Wide range, so it is easy to collect. It will save your cost.
2-Biomass material belong to one kind natural energy. It has no damage for the environment.
3-Biomass material includes lignin, it is one kind natural binder. And it will released out and formed into good quality pellets with the machine temperature. So you don't need to add any additive any more.
4-Market has a large demand for energy product. So the pellets market is developing larger and larger.
2- 1-Suitable size: less than 3-5mm
2-Moisture content: 12-20%
3-Raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed.
4-The production processing does not need any adhensive or chemicals.
2-Moisture content: 12-20%
3-Raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed.
4-The production processing does not need any adhensive or chemicals.
Raw material application
It has a large application of the raw material from agriculture waste, such as the sawdust, cotton stalks, rice husk, wood logs, wood chips, coconut shell, peanut shell, corn stalks, grass, cottonseed skins, weeds, and other plant wastes, especially low-bonding and unformed materials.
.jpg) |
Final pellets
The shape of final pellets is cylinder, which is used for animal feed pellets or fuel pellets for burning or heating. The length of pellets can be adjustable based on your customers’ requirements through the automatic cutter. The final pellets is with smooth surface, for fuel pellets, it is easy to burn, with long burning time as well.
 |

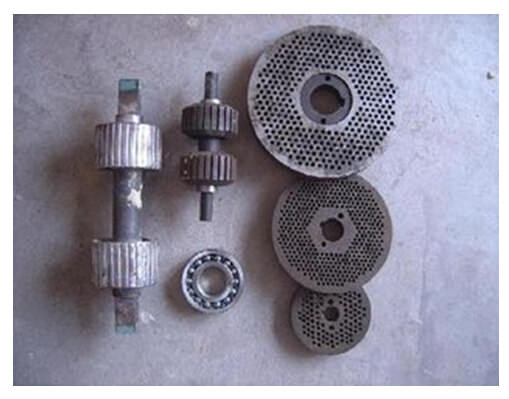

Main spare parts
 |
About packaging
we can offer free fumigation plywood case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting. For multiple machines, or production line, it's better to loaded in standard container 20GP, 40GP, usually it needs wrapped with plastic firstly, plywood case, then loaded in container.
About shipping
we can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
