Straw pellet machine
Straw pellet machine
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
.jpg)
Product Description

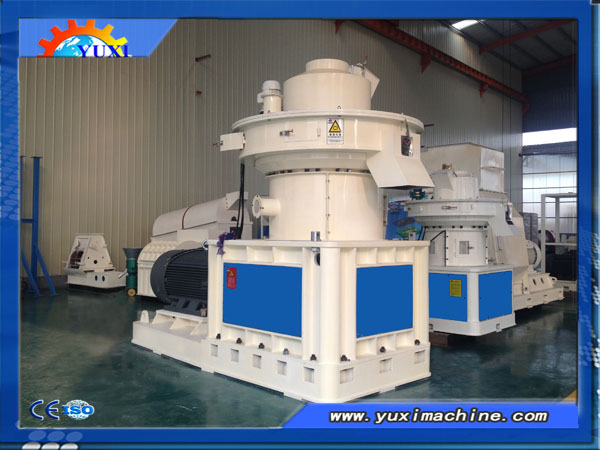

This newly design vertical type ring die pellet mill is the latest product of our company.
It can press the raw material powder into 6-12mm pellet.
Compared with others, our product has larger capacity, more pretty appearance.
It can press the raw material powder into 6-12mm pellet.
Compared with others, our product has larger capacity, more pretty appearance.
Main features of the product:
1. The feeder's special structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3
2. Feeder, conditioner and chute are made of stainless steel with long service life
3. It is with magnet and over load protection system, which can protect machine well during production
4. Feeder is with a variable speed controlled to meet different outputs requirements
5. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey.
The main features of raw material particles machine:
.jpg) |
1. Main drive adopts high-precision gear drive, the ring mold hoop using quick release type, efficiency ratio relative to the belt drive type is about 20%.
2, the whole transmission part of the selection of high-quality bearings and seals, to ensure that the transmission efficiency, stability, and low noise.
3, the international advanced level of compensation type Grid Couplings, novel structure, compact, safe, low failure and other properties.
4. Strengthen the work intensity of the main part of the work from the material, heat treatment process, so as to achieve granulation requires biomass particles.
5, the addition of non-stop refueling systems, air cooling system, high-performance, low power consumption, stable operation, stable and reliable quality of grain
Advantages:
1. Gearbox: Continue using the SKJ series new generation gearbox. Driving with high-precision gears, automanic lubricant pump system Guarantying the gearbox working stability and service life.
2. Vertical motor: Its prominent feature is mounting hole with output shaft as the center and equidistant distribution around, making the machine workingwith more power and stability
3. Blower system: Located in one side of the work bin, it can control the working time freely . The main functions are dedusting and discharging steam.
4. Working parts: Ring-die and rollers materials are alloying steel, Heat treatment is made by ourselves. Hardness ,more than 52, can assure the pellet quality and warranty time. Working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced more capacity, At the same time assure hardness and density. The special design is 4 to 8 rollers working, increasing press rate and capacity. Ring-die is vertical double-deck structure. It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.
1. Gearbox: Continue using the SKJ series new generation gearbox. Driving with high-precision gears, automanic lubricant pump system Guarantying the gearbox working stability and service life.
2. Vertical motor: Its prominent feature is mounting hole with output shaft as the center and equidistant distribution around, making the machine workingwith more power and stability
3. Blower system: Located in one side of the work bin, it can control the working time freely . The main functions are dedusting and discharging steam.
4. Working parts: Ring-die and rollers materials are alloying steel, Heat treatment is made by ourselves. Hardness ,more than 52, can assure the pellet quality and warranty time. Working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced more capacity, At the same time assure hardness and density. The special design is 4 to 8 rollers working, increasing press rate and capacity. Ring-die is vertical double-deck structure. It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.
Applicable scope of raw materials:
Wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, waster paper, and Palm fiber etc.
Requirements for raw materials:
Size: 1-2mm(All the raw materials must be crushed into sawdust before going to wood pellet machine. If not, you may need a wood chipper, wood crusher. )
Moisture: Generally, 10-15% is best for producing good quality wood pellet. If too high, or too low, you need to dry or moisture them first.
Wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, waster paper, and Palm fiber etc.
Requirements for raw materials:
Size: 1-2mm(All the raw materials must be crushed into sawdust before going to wood pellet machine. If not, you may need a wood chipper, wood crusher. )
Moisture: Generally, 10-15% is best for producing good quality wood pellet. If too high, or too low, you need to dry or moisture them first.
Raw materials:
Groundnut-shell Sugarcane Biogases Caster Shells/Stalk Saw dust Coffee Husk Paddy Straw
Sunflower Stalk Cotton Stalks Tobacco waste Mustard Stalk Jute waste Bamboo Dust
Tea waste Wheat Straw Palm husk Soybeans husk Coir Pitch Barks/Straws Rice Husks
Forestry wastes Wood Chips and many other Agro wastes.
Complete Small Biomass Pellet Plant with Capacity 100-1000 kg/1h is developed to meet with the family use which is made up of Hammer Mill, mall Rotary Dryer, Mixer, Screw Conveyor, Conditioner, Flat Pellet Press, Grade Sieve and Cooler, Semi-auto Packing Machine, De-dusting Machine. We can make the perfect design according to your workshop and your different raw material with the economical capital investment.
Groundnut-shell Sugarcane Biogases Caster Shells/Stalk Saw dust Coffee Husk Paddy Straw
Sunflower Stalk Cotton Stalks Tobacco waste Mustard Stalk Jute waste Bamboo Dust
Tea waste Wheat Straw Palm husk Soybeans husk Coir Pitch Barks/Straws Rice Husks
Forestry wastes Wood Chips and many other Agro wastes.
Complete Small Biomass Pellet Plant with Capacity 100-1000 kg/1h is developed to meet with the family use which is made up of Hammer Mill, mall Rotary Dryer, Mixer, Screw Conveyor, Conditioner, Flat Pellet Press, Grade Sieve and Cooler, Semi-auto Packing Machine, De-dusting Machine. We can make the perfect design according to your workshop and your different raw material with the economical capital investment.
Working principle:
The raw material is under dried condition, which is compressed, and formed into small eraser-sized bits, the final pellets is clean, pleasant and smooth, and its density is more than 1.0 KG/M3.
