Honeycomb Coal Briquette Making Machine

If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

The structure and operation principle :

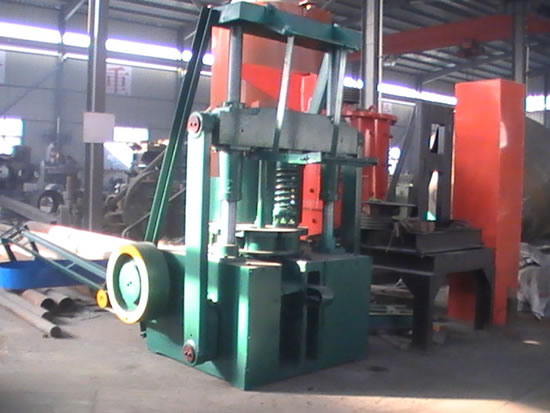

This honeycomb coal briquette making machine with simple structure, include the body, driving, feeding, punching, and conveying, etc, five parts.

1. Body parts: consists of platen, engine base, forming the skeleton entity.

2. Driving parts: consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through two gears pass to axis, then by a pair of bevel gears and the rotating axis to drive the dial, and then pass to the four panel movement.

3. Feeding parts: consists of spindle, hopper, agitator, it will strike by axial gear mixer, beaten coal and load mode barrel.

4. The punching parts: it is meanly consists of four slides, sliding beam, punch, punch holder, punch pin, activity pressure plate, end of activity mode, spring, etc. When the machine driven by two gears, through the pull rod drives the sliding beam, make the punch down, activities set up, the spring become tight, press the coal powder into coal briquettes, and punch the coal briquettes onto the conveyor, for conveying out, the density of coal briquettes, is decided by the spring to tightly press activity plate.

5. Conveying parts: consists of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation the shaped coal briquettes out off the body, the adjustable screw on the conveyor rack can adjust the tightness.

Production process of honeycomb

Production process of honeycomb coal briquette production line :

1. Firstly, you need to crush the coal into powder material by our Coal Crusher .

2. Secondly, you have to mix liquid binder or water with coal powder by the Double-shaft Mixer .

3. The third step is to feed the material into Coal Briquette Machine for producing coal briquette.

4. The last step, you need to dry the coal briquettes duo to the liquid binder by our Box-type Dryer or just under the sunshine if it is strong enough.

5. If you want, we can also provide you the Auto Packaging Machine for packaging the coal briquettes after they are totally dried.

Installation and debugging of our beehive coal briquette making machine :
1. Firstly, you need to put the mahcines evenly and firmly fixed on the concrete ground.

2. Cleaning all the machines about the oil dirties and sundry, then turn on every machine, filling grease in the movement sections.

3. Checking whether the screws of every parts have been loosen.

4. Adjusting the location and gap of rotation, and punching, etc, every part, after they are well adjusted, fixed the pulley by hands, to ensure each part function properly.

5. The host pulley turned to turn as the clockwise like. Forbidden to reverse, you'd better to try the rotation directly of motor by removing the pulley before start running.

Raw Material Information

a. raw materail: any kind of coal and charcoal powder

b. raw material diameter: less than 3mm

c. raw material moisture content: 8-15%

d. add different binder according to your raw material and final briquettes requirements.(liquid and dry powder binder).

The advantage of the honeycomb coal making machine :

a. High profit and low cost in raw material

b. Increase the net calorific value per unit volume

c. Energy saving, friendly-environment, Low-consumption

d. No chemical additives, odourless, smokeless

e. Easy to transport and store as densities product

f. can be easily ignited by a lighter, very convenient

g. burning time is very long

h. equipped with many different moulds,so the final shape can be customized

Service :

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.

Technical parameters of beehive coal briquette making machine:

Model	Production capacity	Motor powder	Specifications (Round , Sqare)
140 A	45 blocks / min	7.5 kw	R 140mm (below), S 100*100mm (below)
140 B	50 blocks / min	7.5 kw	R 140mm (below), S 100*100mm (below)
160	50 blocks / min	7.5 kw	R 160mm (below), S 125*125mm (below)
180	50 blocks / min	7.5 kw	R 180mm (below), S 150*150mm (below)
220	35 blocks / min	11 kw	R 220mm (below), S 200*200mm (below)

Packaging and shipping of our machines:

1. All the machines will be wrapped up with plastic film firstly (including the motors)

2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
