If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

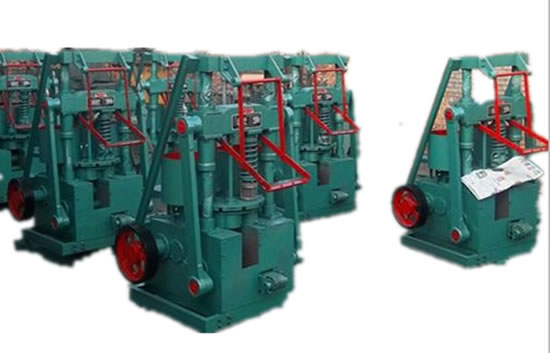

1. Honeycomb briquette machine is to regard the well processed coal as raw material, after crush, mix, and then compress to coal briquettes. After several times of improvements, it has been improved the structure, increased the density, improved performance, prolonged its service live.

2. It is called honeycomb coal briquette machine because the holes on the briquettes make them look like honeycomb, also because of this holes, the surface of the coal briquettes are expanded, so that the coal briquettes can be easily and totally burnt, to reduce the waste of energy.

3. It once was mainly used for family burning, warming, and now after the technology innovation, it can be used in many fields such as coal, energy sources, supply heating, transportation, metallurgy, cement, building materials, refractories, chenical engineering, etc, make the functions of briquette machine press greatly expanded.





This honeycomb coal briquette machine structure is simple, includes the body, drive, feeding, punching, and conveying, etc, five parts.

1. Body parts: consits of platen, engine base, forming the skeleton entity.

2. Driving parts: consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through two gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.

3. Feeding parts: consists of spindle, hopper, agitator, it will strike by axial gear mixer, beaten coal and load mode barrel.

4. The punching parts: it is meanly consists of four slide, sliding beam, punch, punch holder, punch pin, activity pressure plate, end of activity mode, spring, etc. When the machine driven by two gears, through the pull rod drives the sliding beam, make the punch down, activities set up, the spring become tight, press the coal powder into coal briquettes, and punch the coal briquettes onto the conveyor, for conveying out, the density of coal briquettes, is decided by the spring to tightly press activity plate.

5. Conveying parts: consists of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation the shaped coal briquettes out off the body, the adjustable screw on the conveyor rack can adjust the tightness.



1. With different types, we have 140, 160, 180, 220, 260, 300, etc, several different models to provide you different capacity according to your needs.

2. Applicable raw materials: such as coal powder, coal dust, charcoal powder, coal ash, coal gangue, middlings, brown coal, breeze, furnance slag, coke powder, etc.

3. The moulds are adjustable, one machine can with several different types of moulds, and the change of moulds are very easy to operate. Even you can have your own thoughts, we can manufacture the ideal moulds for you.

4. The coal briquettes produced by our coal dust briquette pressing machine are no chemical additives, smelless, smokless, non-toxic, combustible. So it is really an energy saving, environment protection coal molding equipments.

5. The coal briquettes of coal briquette machine can be round, cylinder, square, rectangle, polygon, hexagon, sector, etc, or as your special requirements to make the ideal shapes for you!

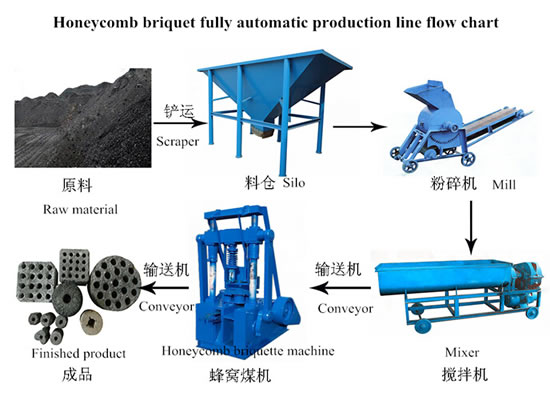

Besides the honeycomb briquette machine, we have also the assistant equipments for the whole production line in store for you, such as the Coal Crusher, Double -shaft Mixer, Belt Conveyor, Auto Feeder, etc. The following are the brief introduction of the procedures, please have a check:

1. Firstly, you need to crush the coal into powder material by our Coal Crusher.

2. Secondly, you need to make liquid binder for increasing the hardness of the coal powder by our Binder Mixer.

3. Third, you have to mix the liquid binder with the coal powder by the Double-shaft Mixer.

4. The forth step for you to do is to feed the material into coal briquette machine for producing coal briquettes.

5. The last step, you need to dry the coal briquettes duo to the liquid binder by our Box-type Dryer or just under the sunshine if it is strong enough.

6. If you want, we can also provide you the Auto Packaging Machine for packaging the coal briquettes after they are totally dried.


1 Raw material---Carbonization---Charcoal---Crushing---Mixer---Honeycomb coal machine---Different size for packing

2 Coal—Crushing---Mixing--- Honeycomb coal machine---Different size for packing









Model(MQJ)	Motor Power (KW)	Capacity (Piece/Min)	Size of briquette(mm)
			Circle	Square
140	7.5	45	BelowΦ140	Below100*100
140	7.5	50	BelowΦ140	Below100*100
160	7.5	50	BelowΦ160	Below120*120
180	7.5	40	BelowΦ180	Below150*150
220B	11	22-26	BelowΦ220	Below200*200
220A	11	20-24	BelowΦ220	Below200*200





1. All the machines will be wrapped up with plastic film first (including the motor).

2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.


Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
