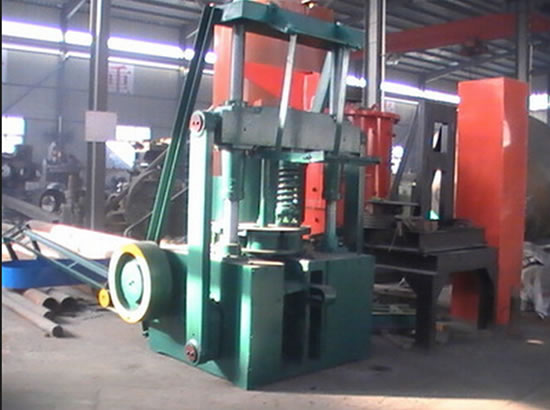

This machine is single-type automatic tablet machine, which is the most popular charcoal machien .It can press charcoal powder to all kinds of charcoal briquette( the pictures we supply above is just two of the shapes).The shape of the charcoal can be changed accourding to the requirementof the user. We will design the mould for the clients. The shape can be plate, square, roll, triangle, cone and etc.

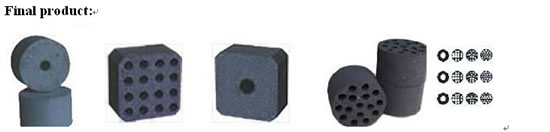

Briquette machine can be divided into closed, semi-closed, vertical, horizontal, double-column, four-poster and so on. It can produce many kinds of coal with different shapes, like square, round, porous, plum blossom, goose egg type, hollow and fast burning coal briquettes (can be ignited by a match), etc.; The multi-use briquette machine can save lots energy and power, but sell at a reasonable price.




Model	DTM-120	DTM-140	DTM-160	DTM-220
Capacity	45pcs/min	45	45	45
Coal diameter	φ100-φ120mm	φ100-φ140	φ100-φ160	φ180-φ220
Coal height	70-80mm	70-80	70-80	100
Power	7.5kw	7.5kw	7.5kw	11kw
Shaft speed	406rpm	406rpm	410rpm	460rpm
Dimensions	1280 ×1160×1750mm	1320 ×1260 ×1850mm	1400 ×1300 ×2000mm	1580×1450 ×2200mm
Coal pressure resistance	60-90kg	60-90kg	60-90kg	60-90kg
Weight	1200kg	1400kg	2000kg	4000kg

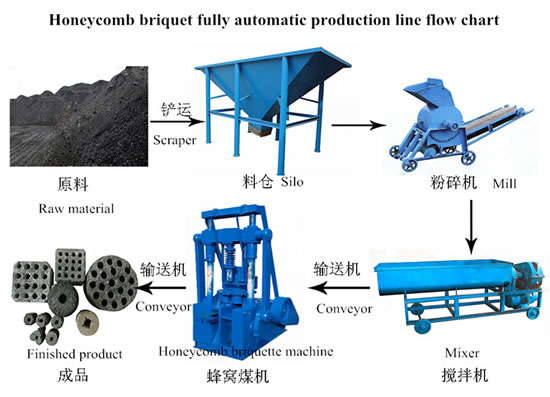

1 Raw material---Carbonization---Charcoal---Crushing---Mixer---Honeycomb coal machine---Different size for packing

2 Coal—Crushing---Mixing--- Honeycomb coal machine---Different size for packing













1. All the machines will be wrapped up with plastic film first (including the motor).

2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.






Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
