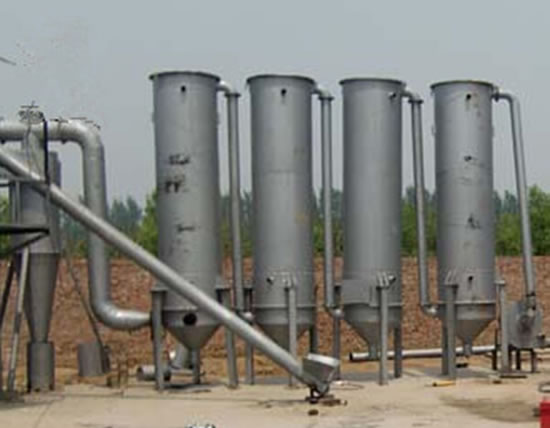

PLC automatic smokeless carbonization equipment is a new type of high efficient energy saving and environmental protection type automatic carbonizing machine, the device is suitable for sawdust, rice husk, bamboo shavings,sawdust, shell, palm shell, coconut shell, hemp stalk straw (crushing) such as carbide fine powder shape orgranular material, not easy for the larger carbide materials. The use of carbonization technology advanced, is the whole process .It does not produce harmful gases, no pollution of the environment.


1 It need a heat source heating fluidized bed when carbonizing machine start-up (first feeding) heating.

(1) One is a kind of using reverberatory furnace to produce heat flow to the combustion carbonizer ,to achieve the goal of heating carbonization machine.

(2) The other is adopting gasifier, lit sawdust by gasifier and gasification of combustible gas to burn carbonizer, to achieve the goal of heating carbonization machine. The sawdust gasification by carbon powder output device of the carbonization machine had become carbonization of carbon powder, in addition to the combustible gas recovery device through purification and utilization.

2 When carbonization machine heating to a certain temperature, the combustible gas which generated by dust separator for dust separation, gas and dust separated again through the recovery device for recovering purification and utilization.

3. After being carbonized machine heating start charing produced gas, by this time the furnace heating or stop gasifier and gas plant, preliminary heating equipment work over.Enter the stage of continuous carbonization. Preliminary heating time about 20 minutes to complete the preliminary heats up.

4. Carbonized machine work about 20-30 (different temperature different time) powder from carbonizer slowly into carbon powder after cooling discharging machine, and from the machine slowly flow, equipment production is normal, can uninterrupted feeding continuously, carbonization, the finished product.


PLC automatic smokeless coking equipment has a single row, double row and multiple row type.Single type of charcoal powder manufactured products 300 kilograms per hour, double row type carbon powder manufactured products 600 kilograms per hour, If you need more high yield can be configured with a plurality of rows of type .Smokeless carbonizer PLC automatic control in the coking byproduct in the process of wood tar is a kind of important chemical raw material, contains more than 300 kinds of chemical elements in the wood tar, the device will automatically discharge wood tar.Wood tar (generally available every producing one ton of carbon powder 200 kg to 300 kg of wood tar) have special recycling equipment for recycling.


The unique design of the PLC automatic smokeless carbonization equipment without drying of raw materials, raw materials will automatically drying, and automatically discharge water, greatly improves the efficiency of carbide carbide, both from the quality or efficiency, can meet the needs of different customers, obtained everybody approval. The energy saving and environmental protection features, more strong support from the government. The production line adopts PLC automatic control system, labor saving, convenient and simple operation.












♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
