Briquette making machine
Briquette making machine
Briquette making machine:
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
.jpg) |
Brief introduction:
Briquette making machine is mainly used in coal powder, coal slime, middings coal, coke, charred coal as well as metallurgy powder cool suppress ball, refractory material. Any powder materials which required being press on the furnace need ball press machine to complete.
With advantages of high pressure, high molding rate, high output, easy operation, and stable quality.
.jpg) |
Feature
1. High profit and low cost in raw material
2. Increase the calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product
The advantage of briquette making machine
1.No need biner
2.Good quality propeller
3.No smoking
4. high density briquettes
4. Supply complete production line
2.Good quality propeller
3.No smoking
4. high density briquettes
4. Supply complete production line
Working Principle
Under the high temperature and high pressure, the natural lignin in biomass will be liberated with wood fiber, it will serve us glue function, the front of prepeller and the back of mold will produce the high preasure to the raw materials, the heating ring produce the heat for the briquettes

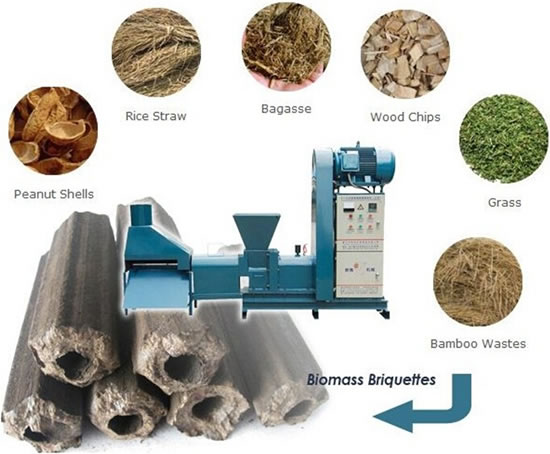

The raw material of briquette making machine
Wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks,
peanut plants, sunflower stalks, bamboo saw dust, bagasse etc.
.jpg) |

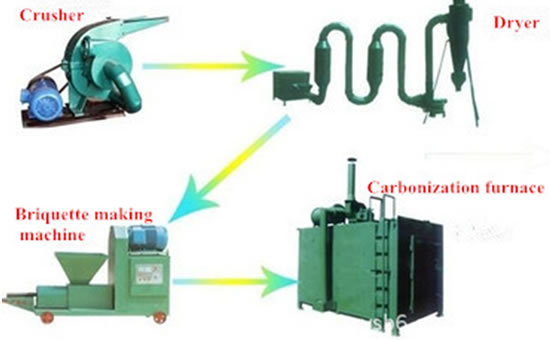

The process for briquette making machine
(1). Crush the raw material into small pieces (diameter is about 3-6mm)
(2). Dry the material by machine or dried it in the sun , till the moisture is less than 14%
(3). Put the material into feed let of briquette machine
(4). Produce the briquette stick from biomass material without any additive
(5). Carbonized the briquette stick
(2). Dry the material by machine or dried it in the sun , till the moisture is less than 14%
(3). Put the material into feed let of briquette machine
(4). Produce the briquette stick from biomass material without any additive
(5). Carbonized the briquette stick

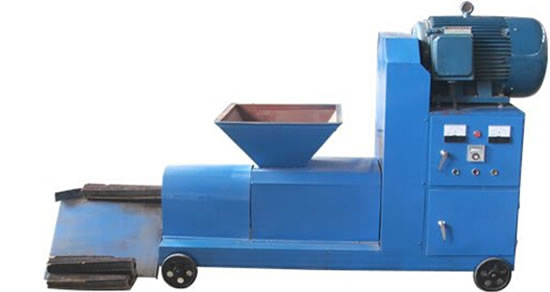

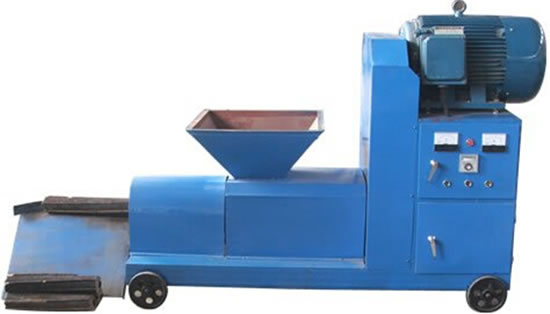

Details picture of briquette making machine:
.jpg) |
Appendage

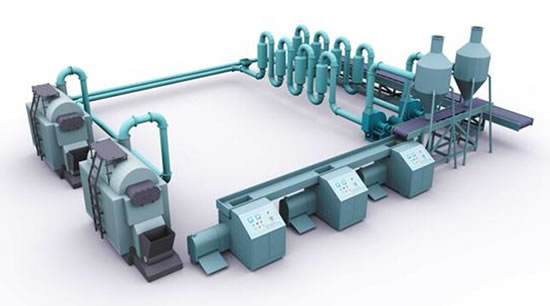

Apart from the briquette machine , other related machine such as feeder, grinder, crusher and dryer are also available in our factory, it means we can offer a whole product line.
.jpg) |
In order to give you the quotation in time,Pls. tell me the answer of the following questions.
1. what's Raw material ?
2.The moisture and size of raw material ?
3.Capacity you need ?
4.The shape and size of the final product you prefer?
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
