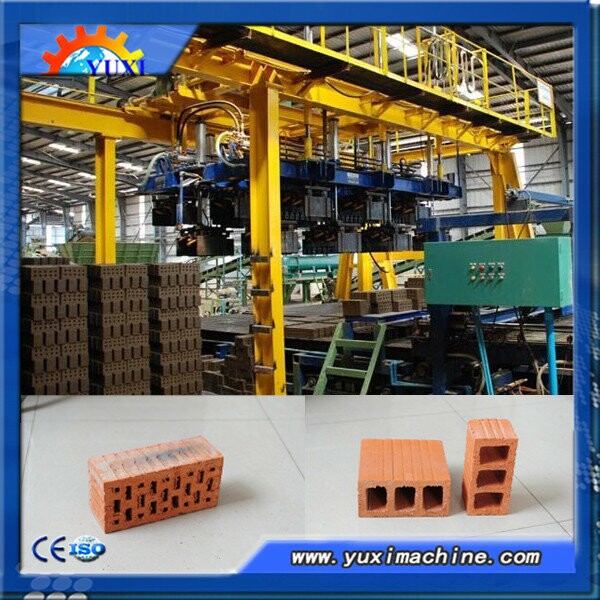

Automatic Setting Machine
Automatic Setting Machine
Automatic Setting Machine
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
.jpg) |
Specification of Brick Setting machine:
- applies to brick stacking in the once or twice firing tunnel kiln
- controlled by the electricity and hydraulic lift
- energy saving
- efficiency
- easy maintenance
- low cost and stable operation.
- applies to brick stacking in the once or twice firing tunnel kiln
- controlled by the electricity and hydraulic lift
- energy saving
- efficiency
- easy maintenance
- low cost and stable operation.
Technical Parameters:
| Production Capacity(pcs/year) | Installed Capacity(kw) | Weight(kg) |
| 30.000.000 | 26.6 | 18000 |
| 60.000.000 | 26.6 | 19600 |
| 120.000.000 | 26.6 | 19600 |
The parts of automatic brick setting machine:
* moving trestle
* clamp plate
* separator
* lifting guide pillar
* rail
* hydraulic system
* electrical system
The workflow of hydraullic brick setting machine:
When the cutter pushes the green bricks to the separating board , the separator starts work , it drives the separating board stretch and separate the bricks .
When the brick separating is finished , the lift cylinder turns down .
When the clamp plate reaches the pre-set location , the clamp plate fixture picks up the bricks ,and then it is lifted to a predetermined height by the lifting cylinder .
After all those progress , the separator opens the air duct and the moving evice drives brick stacking machine to the top of the kiln car , the kiln car rotates 90° and then lift cylinder drops down to a predetermined height for setting bricks , the clamp plate opens and lays the bricks on the kiln car , it completes stacking stacking process automatically .
With the periodical operation the whole stacking work is finished , all the functiongs are centralized controlled automatically.
When the cutter pushes the green bricks to the separating board , the separator starts work , it drives the separating board stretch and separate the bricks .
When the brick separating is finished , the lift cylinder turns down .
When the clamp plate reaches the pre-set location , the clamp plate fixture picks up the bricks ,and then it is lifted to a predetermined height by the lifting cylinder .
After all those progress , the separator opens the air duct and the moving evice drives brick stacking machine to the top of the kiln car , the kiln car rotates 90° and then lift cylinder drops down to a predetermined height for setting bricks , the clamp plate opens and lays the bricks on the kiln car , it completes stacking stacking process automatically .
With the periodical operation the whole stacking work is finished , all the functiongs are centralized controlled automatically.
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
