Radial tire Shredder
Radial tire Shredder
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
.jpg) |
Background: Waste tyre is solid waste in Britain, Canada or other developed countries, so got it with lower prices, may have a big wealth, because waste tyre really is a treasure for its broad use.
In recent years, with the development of industry, waste tyre can play an important role , whether bias tyre or radial tyre, its main component is rubber, metal, textile,, these materials can be recycled. With radial tyre for example, 25% of steel wire can be processed into steel grit, as shipyard derusting, every tons of price is RMB5000, also can make steel ball for cement mill every tons of price is RMB6000. And 75% of rubber mixture, can be processed into fine glue powder, every tons of price is RMB3000, for other hand this waste rubber can be processed into reclaimed rubber, every tons of price is RMB4000, these material has been widely used in rubber industry, building materials industry and plastics, coatings, highway, etc. So waste tyre isn't junk but the recycling of renewable resources.
Main Processing:

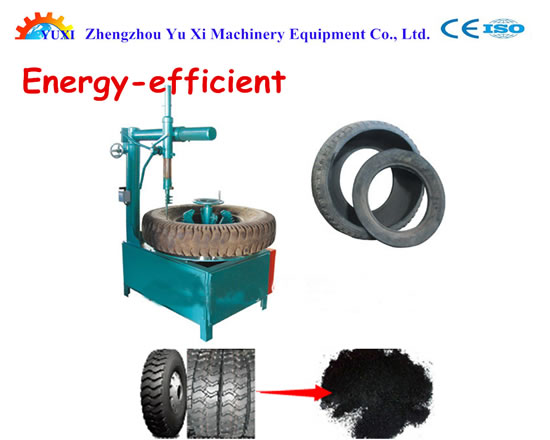

1.steel wire drawer: separate the wire in the tyre.
2.whole tyre crusher: crush the tyre to 30-80cm chips
3.rubbing/cutting machine: coarse crushing, fine milling, separating steel wire etc .
4.rubber powder screener: grading the crude fibre and rubber powder.
5.Belt Iron separator: mainly applied for separating the iron materials from the rubber particles.
6.Magnetic roller Iron separator: can be effectively used for separating small iron powder.
7.rubber fiber separator: used in separating the fine fluff fibre mixed in rubber powder.
8. rubber fine miller: fine grind the rubber granule to 5-100mesh.
Application of Fine Glue Powder:
5-10mesh:The runway, the school playground, gardens, trail, bowling alley, sidewalks, , amusement parks, artificial turf soccer, nursery school sports venues ect
10-20mesh:Rubber floor tile, plastic runway, lawn quartz sand, tennis court, volleyball court, golf course, basketball court and leisure casino, EPDM safely pad, gym mat, all kinds of stadium mat ect
30-40mesh:Insulated material, waterproof materials, shockproof, washer, roof and wall of the modified asphalt waterproofing materials, additives, reclaimed rubber, livestock bedding ect 60mesh:Sleeper, rubber, waterproofing materials, reclaimed rubber, tire inside cushion, automobile body bottom seal, waterproof ring, rubber sundries and replace primary glue making rubber products.
80mesh:Modified asphalt additives, reclaimed rubber, waterproofing materials, size tire additives, sleeper, deceleration road arch, sealing strip, buffer, foam rubber, pearl felt pad, rubber piston, brakes bushing and other rubber products.
100mesh:Car bias tire auxiliary material, shoe special packing, sport equipment tire.
120mesh:Heat preservation material oil additives, car bias tire auxiliary material, auto refurbished the mat, shoemaking special packing, chemical sealant, all kinds of rubber mixture permeability.
200mesh:Building materials paint, tires, replace rubber production of rubber products.
Rubber Radial Tire Grinding Mill/Rubber Refining Mill
Specification:
rubber refiner,rubber refiner machine/machinery
rubber refiner mixing mill
rubber crusher/crushing machine
Usages:
Will cut 3-8cm block into 10 to 30 mesh size (0.6 to 2mm) rubber powder
Application:
The machine is primarily used for pulverizing crushed waste tires conducted at ambient temperature, especially for wire tires, and of coarse pulverization, fine pulverization, and the steel wire separation. By rotary milling, the material particles are at a performance of 10-30 mesh. The pure colloidal particles can reach about 99% by screening and conveying to the magnetic separator. When the 40-100 mesh crumb are needed, about 30 mesh particles are directly launched into the ultrafine mill group processing.
Structure & Principle:
It consists of one base, frame, front and rear roller, transmission gear, reducer, motor, adjusting devices, safety switches and electrical control components
Rollers adopt alloy cold hard-cast iron (rollers implement national standard by HG/T3108-1998) surface hardness wear and long lifespan, can be used repeatedly
Advantage:
1.11Years'experiences manufacturer
2.China expert on waste rubber pulverization
3.Brand pulverizer,shredder,crusher,screener,separator,grinder
4.Lifetime warranty,lowest price
5.ISO9001,SGS certification
Features:
1. Shear-cutting crusher, Patented design structure.
2. High efficiency and capacity (max. Capacity: 8T/day).
2. High efficiency and capacity (max. Capacity: 8T/day).
3. No pollution, easy operation.
Technical Data:
|
Model
|
XKP-400
|
XKP-450
|
XKP-560
|
|
Diameter of roller(mm)
|
400
|
450
|
560
|
|
Length of roller(mm)
|
600
|
650
|
820
|
|
Liner speed of front roller(m/min)
|
18.65
|
24.5
|
25.6
|
|
Friction ratio of roller
|
01:01.3
|
01:01.3
|
01:01.3
|
|
Input Size(cm )
|
3-8cm block
|
3-8cm block
|
3-8cm block
|
|
Output size
|
10 to 30 mesh size (0.6 to 2mm)
|
10 to 30 mesh size (0.6 to 2mm)
|
10 to 30 mesh size (0.6 to 2mm)
|
|
Capacity(kg/h)
|
200-400
|
400-600
|
2000
|
|
Motor power(kw)
|
55
|
75
|
110
|
|
L*W*H(m)
|
3.85×1.8×1.55
|
4.65×2×1.55
|
4.75×2.3×2
|
|
Weight(t)
|
7.5
|
11
|
18.5
|
Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
