If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
Applications:

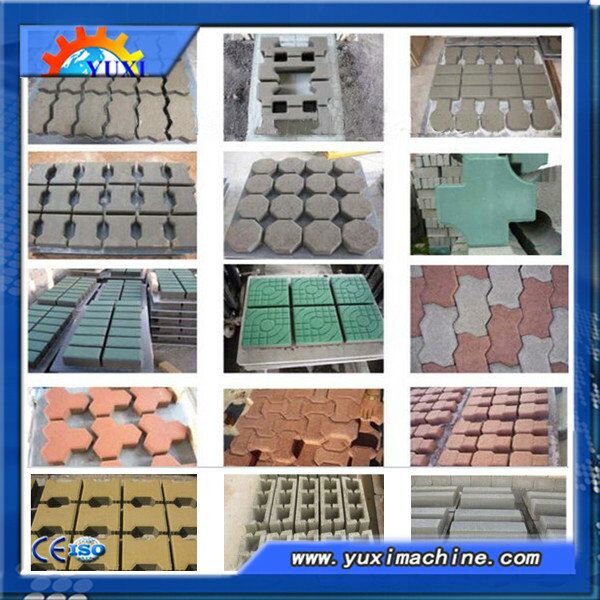

Widely used in construction, roads, squares, hydraulic, gardens construction ect. Products like :Brick exterior, interior brick, wall displaying blocks, floor plate, berm blocks, and interlocking pavement blocks and curb stone brick pavers secondary color fabric bodies
Raw Material
Sand, gravel, cement, can add a lot of fly ash, slag, steel slag, coal gangue, ceramic, perlite and industrial waste.
 |
2. Mitsubishi PLC, Touch screen controller, Omron, Schneider electrical components;
3. Proportional electro-hydraulic relief valves;
4. 360 degrees of second colorful materials feeding system. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;
5. Heavy duty machine structure and wear resistant moulds, the hardness reaches up to HRC 52-58. Greatly improves the using lifetime of the machine by 50%.
6. Pallets feeder of pusher brake system;
7. Water cooling system.
 |
The size of the machine: 4000*3500*2300mm
Pallet Size: 680*535*30mm
Exciting Force: 22 KN
Forming Cycle: 20~30 Sec
Vibration Frequency: 4500~5100/Minute
The Power of Vibration Motor: 2*3KW
The Pressure of Hydraulic System: 6.3mpa
GW of the block making machine: 4.8T
Power of Installed Capacity: 16KW
 |
2. 6m Belt Conveyor
3. 350 Pan Mixer (for the raw materials)
4. Pigment Materials Feeder

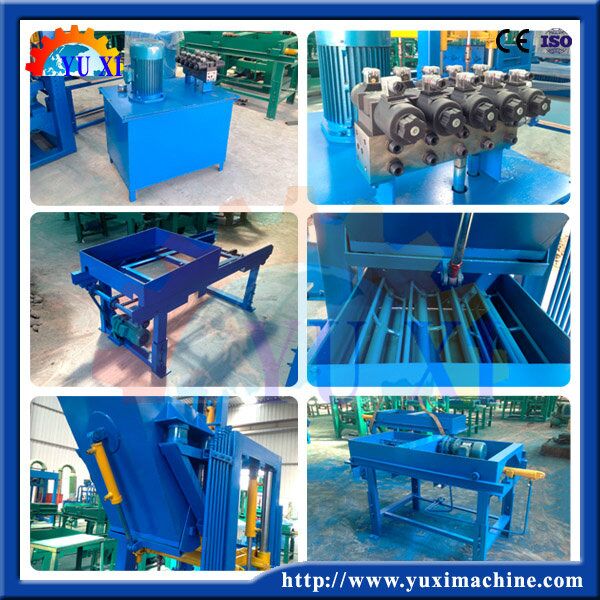

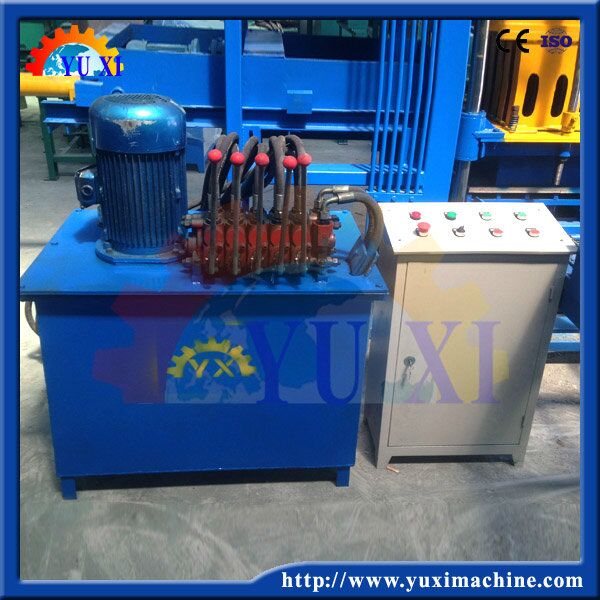

5. Hydraulic Station of Block Making Machine
6. Pallets Supply Machine
7. Green Blocks Conveyor
8. 400×200×200mm Hollow Block Mould
9. 2 Trolleys
.jpg) |
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site
