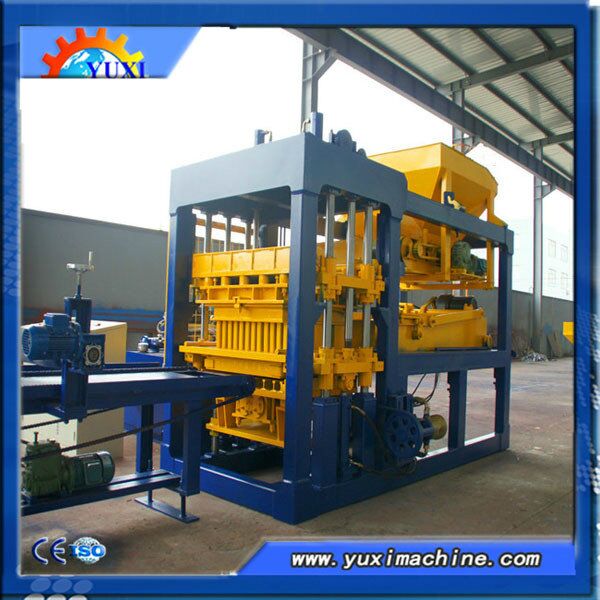

8-15 block making machine

Product center

If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

Applications:

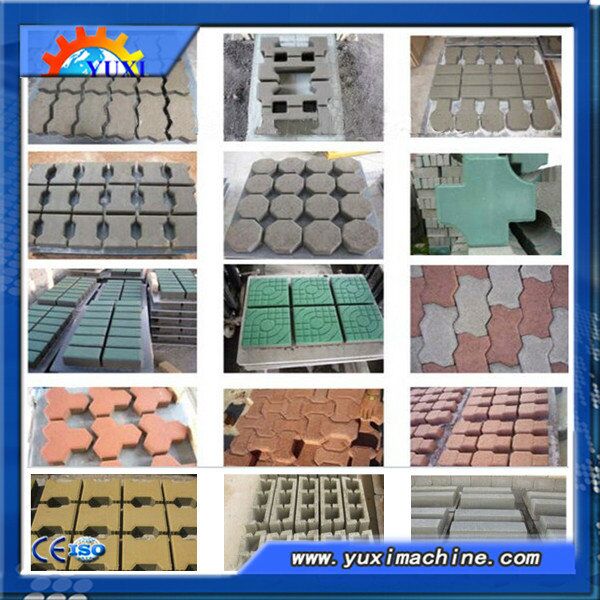

Widely used in construction, roads, squares, hydraulic, gardens construction ect. Products like :Brick exterior, interior brick, wall displaying blocks, floor plate, berm blocks, and interlocking pavement blocks and curb stone brick pavers secondary color fabric bodies

Raw Material

Sand, gravel, cement, can add a lot of fly ash, slag, steel slag, coal gangue, ceramic, perlite and industrial waste.

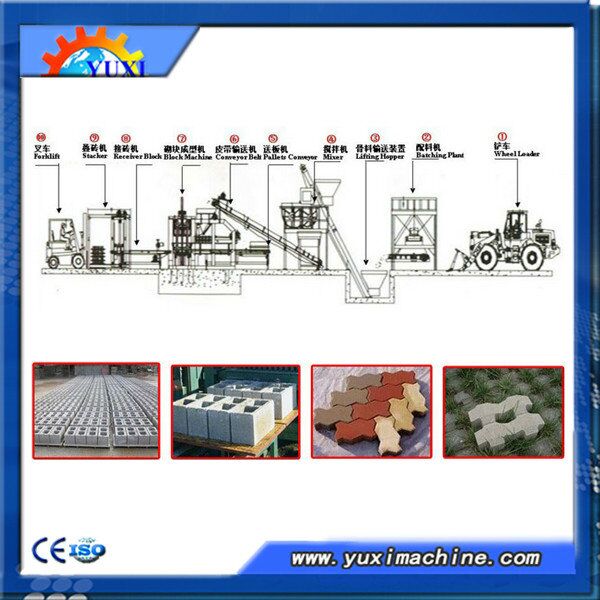

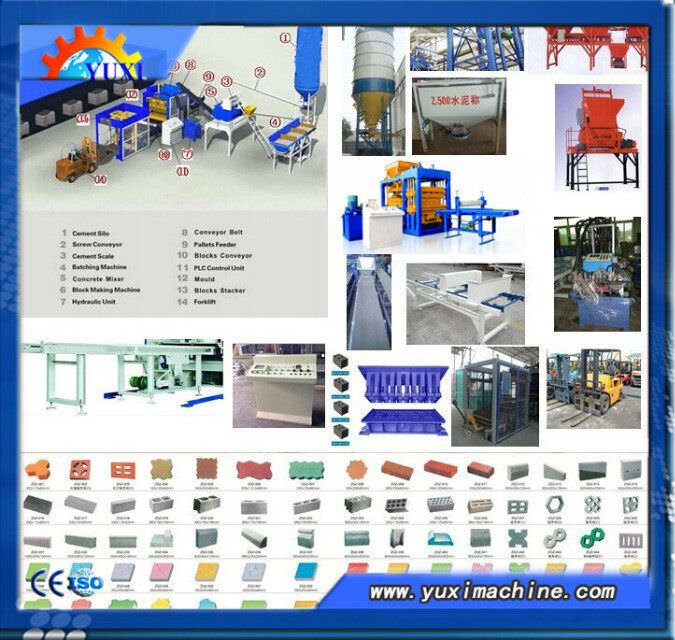

Production line consisting:

1. Automatic batching system :

Including cement silo, cement electronic scales, screw conveyor, batching machine, belt feeder points.The system uses computer-controlled technology, to reach automatic correction amount, automatically fall correction, set the automatic and manual adjustment of the moisture content of the material, measurement accuracy, quality and stability. two or more raw materials were sent to two mixer by a belt feeder with corresponding ratio.

2.Mixing system
The system is consists of mixer, 8 m belt conveyor components. Need to increase with fabrics and fabric conveyor mixer when produce color products. After the system stirred the setting materials, the 8m conveyor belt will send to the hopper of the block making machine.

3.Molding system

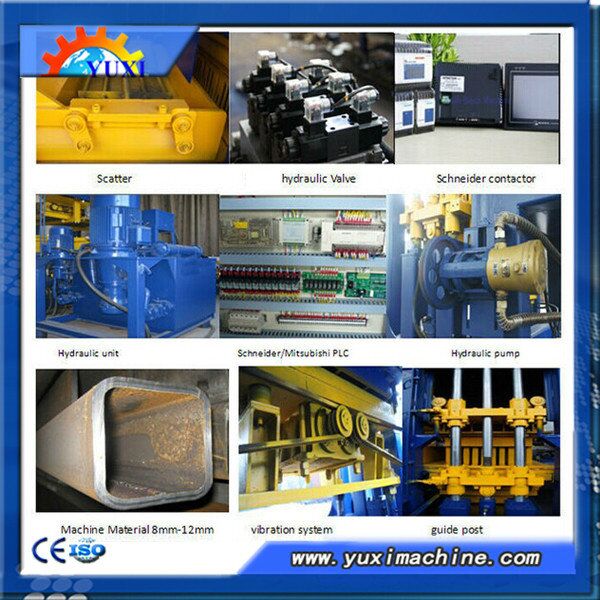

Including the block making machine, send machine, send brick, hydraulic system , automatic control system .it needs to increase the fabric machine when produce the color products.

   Precise line cutting and carburizing treatment technology are adopted to prolong the moulds service life.
   The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration.

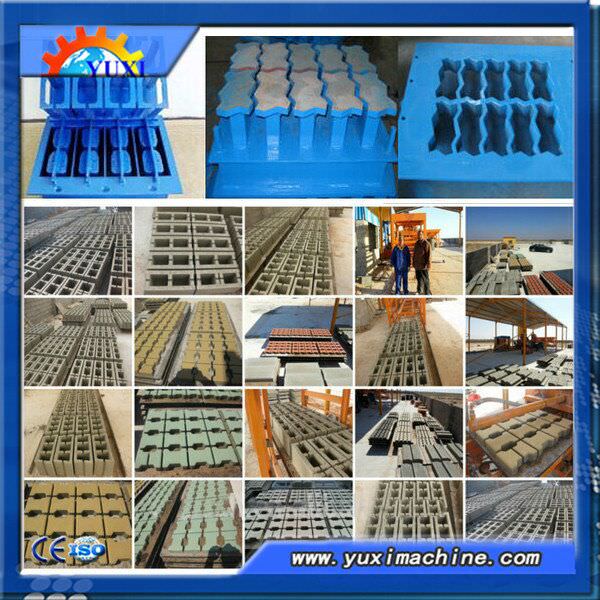

   The Multifunctional concrete brick making machine can produce hollow, solid, paving, and interlock bricks/blocks,just by changing the moulds.

Host machine dimension   3000x2200x2950mm
Moulding area   800x820mm
Moulding period   15-20s
Pallet size   860x940x20/25mm
Host machine weight   12.5t
Host machine power   33.9kw
Vibration force   60kn
Factory Area   600m2
Capacity   50kw
Mixer Model   JS500

Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
