10-15 Cement brick making machine

Product center

If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

Applications:

Widely used in construction, roads, squares, hydraulic, gardens construction ect. Products like :Brick exterior, interior brick, wall displaying blocks, floor plate, berm blocks, and interlocking pavement blocks and curb stone brick pavers secondary color fabric bodies

Raw Material

Sand, gravel, cement, can add a lot of fly ash, slag, steel slag, coal gangue, ceramic, perlite and industrial waste.

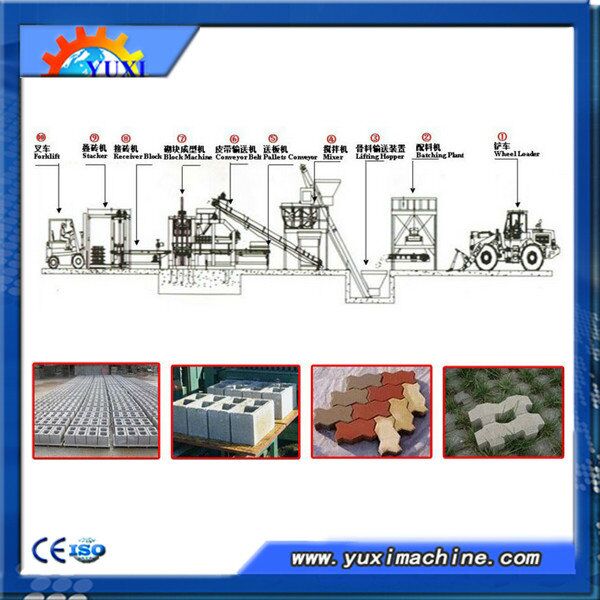

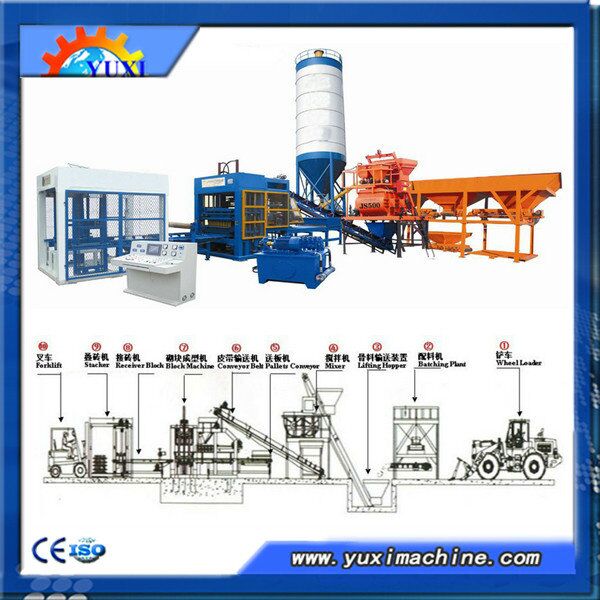

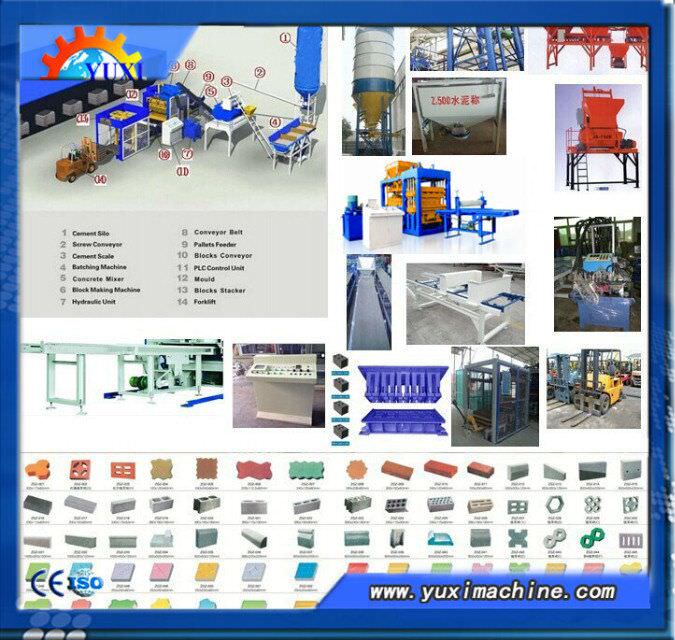

Production line consisting:

1. Automatic batching system :

Including cement silo, cement electronic scales, screw conveyor, batching machine, belt feeder points.The system uses computer-controlled technology, to reach automatic correction amount, automatically fall correction, set the automatic and manual adjustment of the moisture content of the material, measurement accuracy, quality and stability. two or more raw materials were sent to two mixer by a belt feeder with corresponding ratio.

2.Mixing system
The system is consists of mixer, 8 m belt conveyor components. Need to increase with fabrics and fabric conveyor mixer when produce color products. After the system stirred the setting materials, the 8m conveyor belt will send to the hopper of the block making machine.

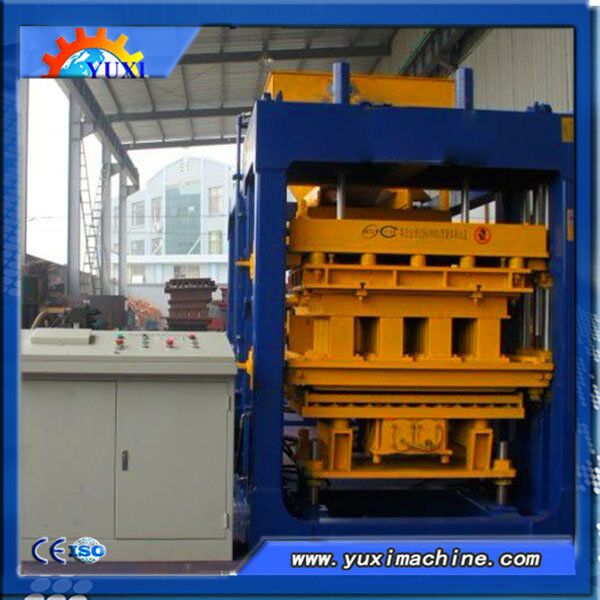

3.Molding system

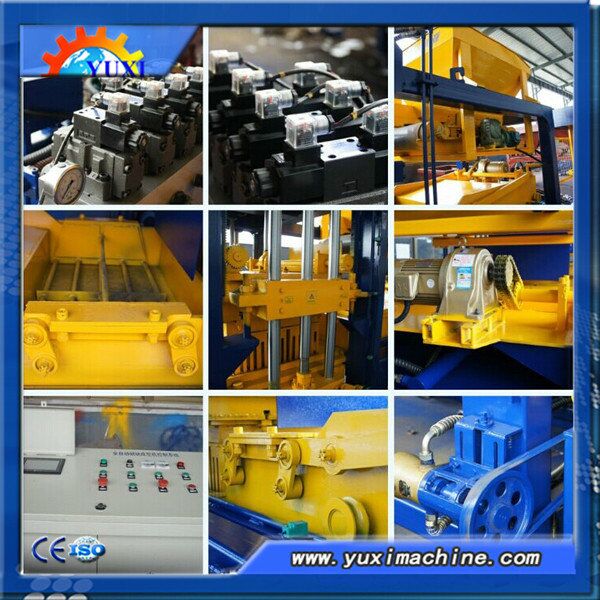

Including the block making machine, send machine, send brick, hydraulic system , automatic control system .it needs to increase the fabric machine when produce the color products.

1)Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2)Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
3)The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.

Overall Dimension   9350×2320×2950(mm)
Rated pressure   21MPa
Main vibration form   Platform vibration
Cycle Time   15-25 seconds
Vibrating Frequency   2800-4500 rolls/minute
Motors Power   44kw
Pallet Size   1100*900(mm)
Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

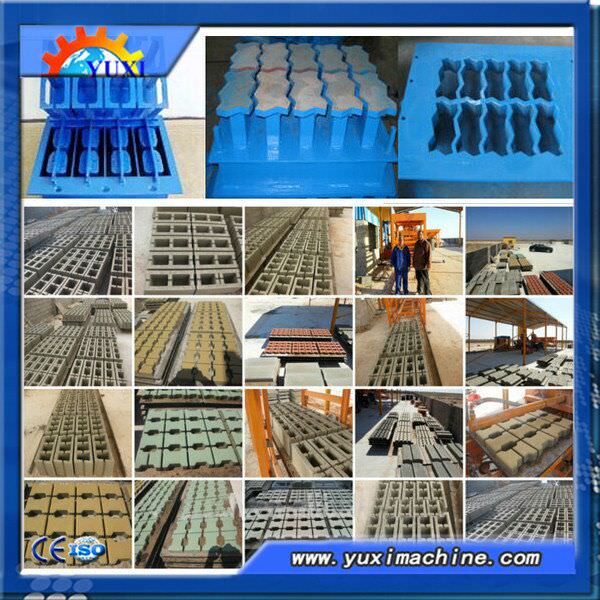

Applied Products
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
