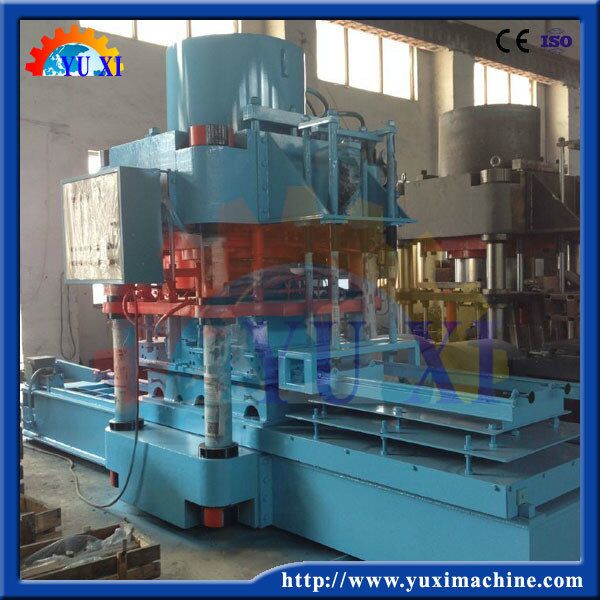

YX-1000 Terrazzo Tile Press Machine
 |
If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !
1. Terrazzo Tile Press Machine:
The performance characteristics :
Man-machine interface using Mitsubishi Japan or Taiwan station "PLC" control system, choose import brand "man-machine interface" color monitor (Chu Moping), a microcomputer automatic control program. The main machine adopts pure steel by precision machining.
The characteristics of the equipment
1,Technology: international initiative, the leading domestic, guide consumption, contribute to society.
2, Operation:high automation, simple operation, easy maintenance.
3, Production: low cost, less energy consumption, high efficiency; Low carbon, green and environmental protection.
4, Personnel:personnel demand less, labor intensity is small. product specification: 1500 * 1000, 1000 * 1000, 1000 * 800, 600 * 600, 600 * 400300 * 500, 400, 300, 250 * 500, 300 * 600 (mm).Thickness is adjustable.
6, Precision: dimension precision, density, high strength, low broken rate.
7,Product characteristics: flexural performance is good, high wear resistance strength, prevent slippery effect is good, durable, good taste.
 |
The main technical parameters:
1, the rated pressure of 1000 tons
2, the production capacity of 2-3 pieces per minute
3, the host power 33KW
4, the product specifications of 1500 * 1000mm and the following varieties
5, the host weight 28000 kg
6, size 6700 x 2900 x 2600 (mm)
 |
Properties:
(1) by replacing the die, can produce 500 x 500mm, 400 x 400mm terrazzo tile, product thickness, weight can be adjusted by adjusting the quantitative cup.
(2) a high degree of automation, simple operation, equipment operation only 2-3 people.
(3) the production of low cost, small labor intensity, low energy consumption, no pollution.
(4) product appearance size accuracy, high pressure, high strength. Various patterns, lines clear.
Including the raw material hoist, forced mixer, quantitative feeder, forming machine

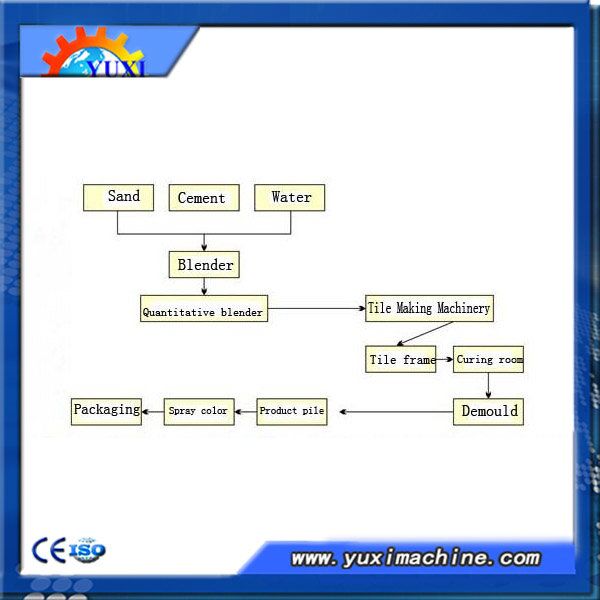

Production line

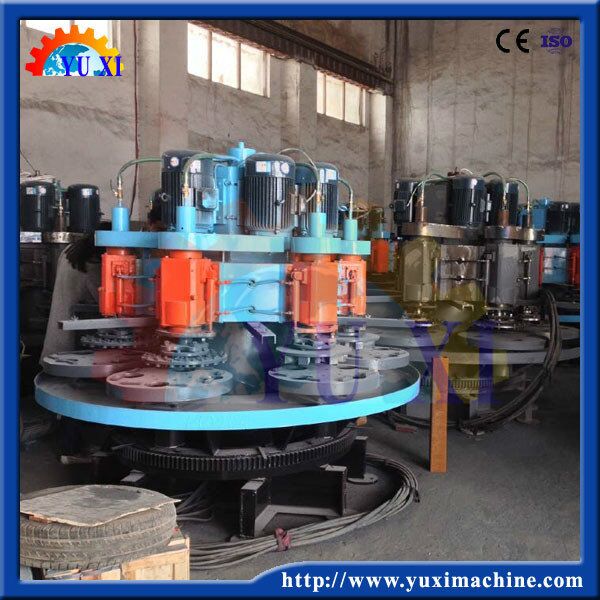

Raw material hoist Forced mixer Quantitative feeding machine Terrazzo brick molding machine Grinding stone brick machine forming
.jpg) |
The scope of application:

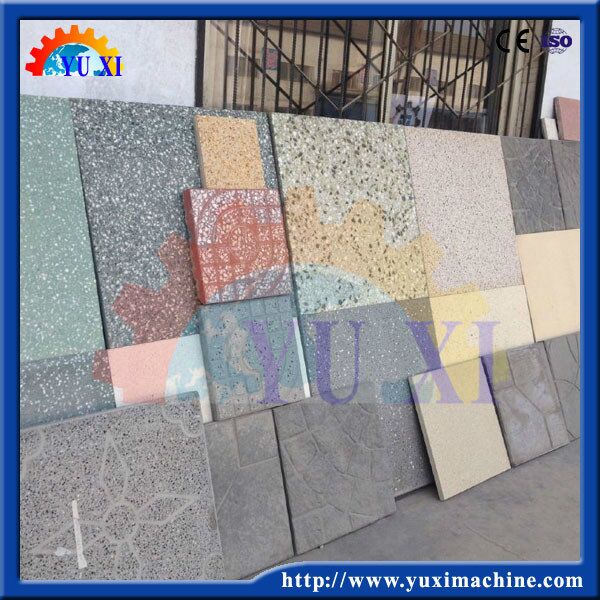

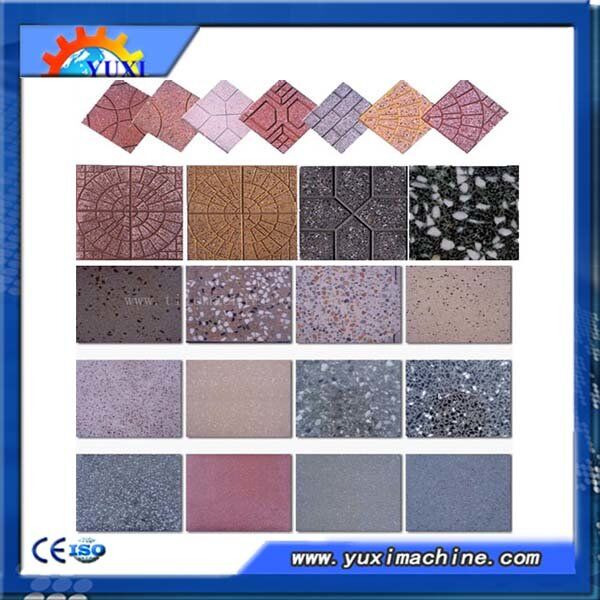

Color terrazzo tiles, with various patterns, pattern clear lines, color variety, high density, high strength, good anti slip effect, and can replace the granite geostrophic and marble tiles, mainly used for laying city sidewalks, square ground, indoor ground, is to improve the taste of the city's most ideal laying on the ground material.
 |
Packaging:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
