YX-600 Floor Tile Making Machine

Product center

If you want to know more information about our machine , please sent email to zhengzhouyuxi@yuximachine.com, we will give you the most professional reply at first time !

The scope of application:
Color terrazzo tiles, with various patterns, pattern clear lines, color variety, high density, high strength, good anti slip effect, and can replace the granite geostrophic and marble tiles, mainly used for laying city sidewalks, square ground, indoor ground, is to improve the taste of the city's most ideal laying on the ground material.

(1) By changing the mold, can produce other size terrazzo tiles, product thickness, weight can be adjusted by adjusting the quantitative cup.
(2) a high degree of automation, simple operation, equipment operation only 2-3 people.
(3) the production of low cost, small labor intensity, low energy consumption, no pollution.
(4) product appearance size accuracy, high pressure, high strength. Various patterns, lines clear.

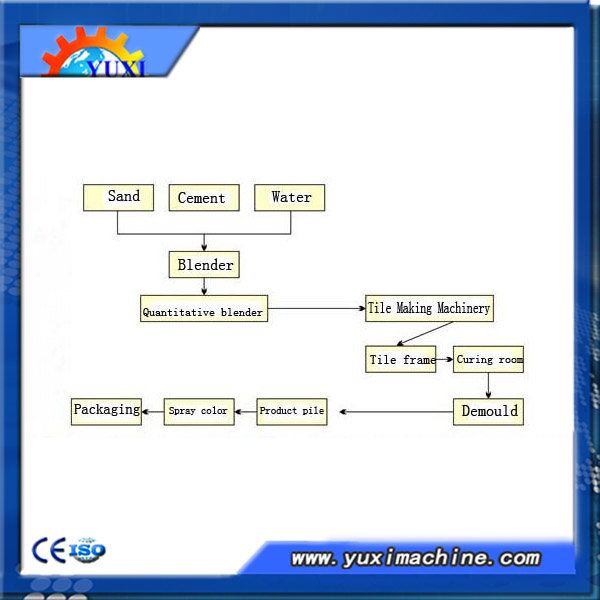

Production line
Raw material hoist Forced mixer Quantitative feeding machine Terrazzo brick molding machine Grinding stone brick machine forming

Technical parameters:
(1) Product specification: 600 * 600 mm, 500 x 500 mm, 400 x 400 mm. Thickness is adjustable.
(2) Molding pressure: 320 t
(3) Main power: 7.5 KW
(4) Production of power: 3-5 / min
(5) Appearance size: 3100 * 1500 * 1500 (mm)

Packaging:

1. All the machines will be wrapped up with plastic film first (including the motor).

2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
